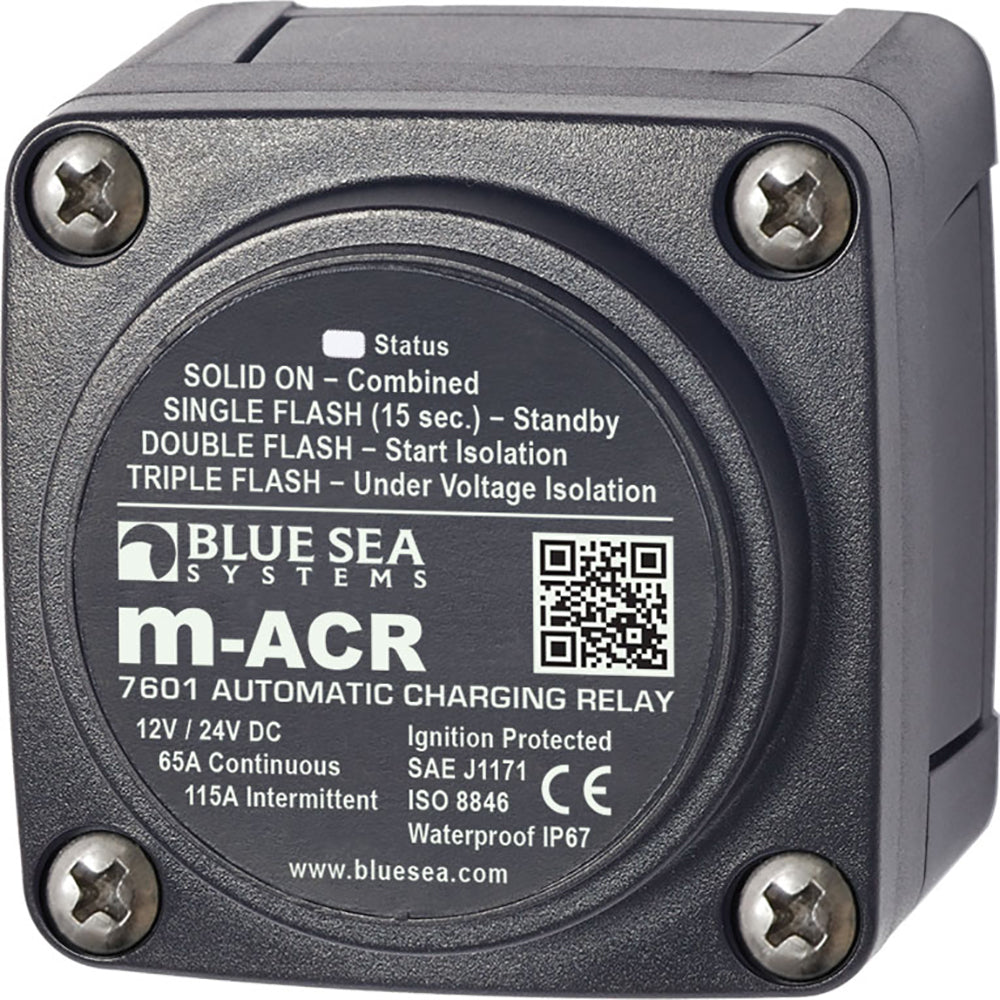

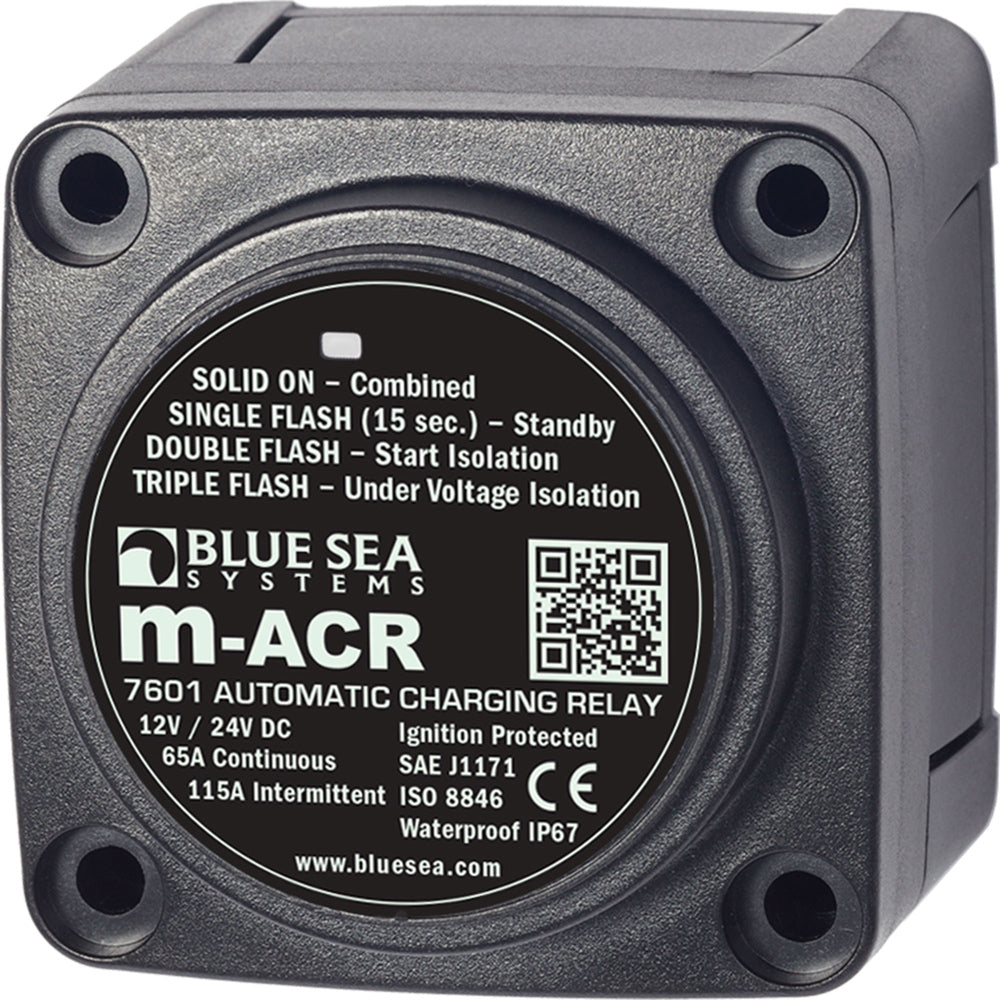

Blue Sea Systems 7601 DC Mini ACR Automatic Charging Relay, 65 Amp

Blue Sea Systems 7601 DC Mini ACR Automatic Charging Relay, 65 Amp

$89.95
$89.95
Sale Sold out
Shipping calculated at checkout.

10+ available

About this product

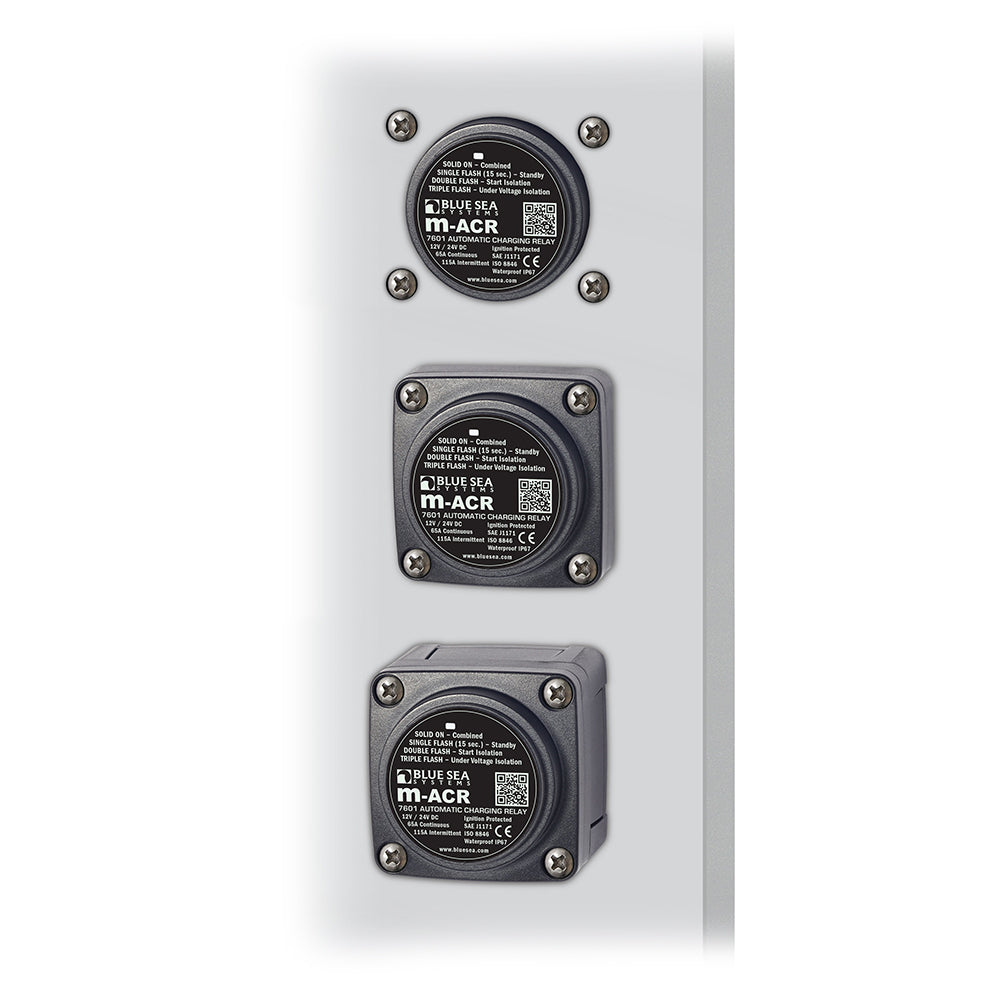

The Blue Sea Systems 7601 DC Mini ACR is an automatic charging relay designed to manage charging current for 12V DC systems, handling alternators up to 65 Amps commonly found on inboard and outboard engines. Its compact design supports both surface and panel mounting, while the included snap-on cover provides essential insulation for terminal connections.

Key Features:

  • 65A continuous rating; 115A intermittent rating (5 minutes).
  • Senses charging on two battery banks.
  • Integrated LED provides clear ACR status indication.
  • 1/4"-20 terminal studs with 5/8" stud length.
  • 1/4" x .032" male quick connect ground terminal.
  • Maximum cable size: 1/0 AWG.
  • Maximum torque: 75 in-lb (8.5 Nm).
  • Relay contact thresholds: Combines at 13.0V DC (30 sec.) or 13.6V DC (2 min.); Opens at 12.75V DC (30 sec.) or 12.35V DC (10 sec.).
  • Under voltage lockout: 9.5V DC; Open high voltage limit: 16.0V DC.
  • Operating current: 15mA (open) / 175mA (combine).
  • Regulatory note: This product contains di(2-ethylhexyl)phthalate (DEHP), a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm.

Manuals & videos

  • Secure checkout
  • 21-day return requests
  • Free standard shipping $100+

Product facts

CT SKU
CT-102566
Model / MPN
7601
UPC / GTIN
632085076016
Package dimensions (H × W × L)
3" X 4" X 7"
Package weight
0.56 lb
Country of origin
UNITED STATES

Specifications

Continuous Amperage
65a
