HawkEye DepthTrax 2B In-Dash Digital Depth Gauge, 600ft Range, Dual Mount

Navigate with confidence and precision using the HawkEye DepthTrax 2B In-Dash Digital Depth Gauge. Engineered with advanced sonar algorithms, this depth sounder delivers highly accurate readings down to 600 feet, significantly reducing false signals for unparalleled reliability. Its high-speed performance ensures uninterrupted depth monitoring even at planing speeds. Designed and supported in the USA, the DepthTrax 2B offers robust performance for all your boating adventures. Elevate your vessel's capabilities and journey fearlessly with HawkEye.

In the Box:

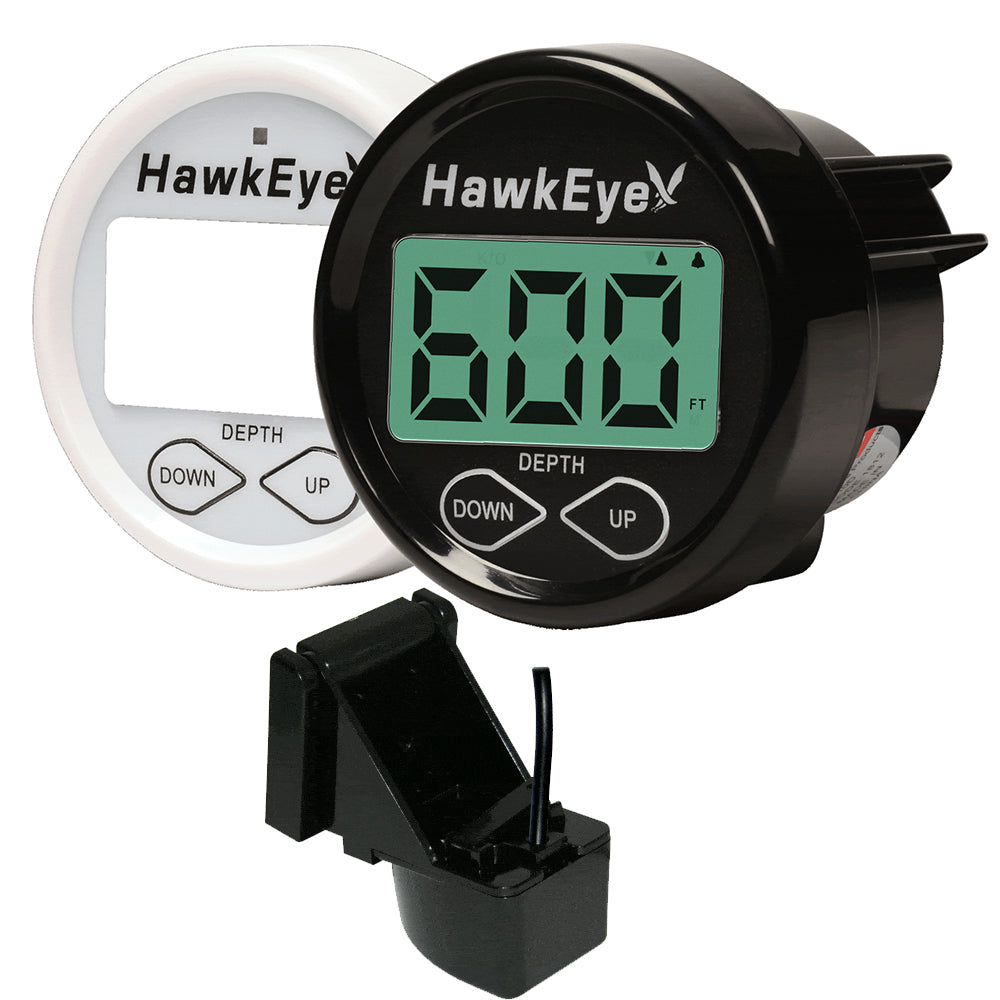

• HawkEye DepthTrax 2B Display Assembly
• Black Face Plate & Bezel
• White Face Plate & Bezel
• Display Storage Cover
• Display In-Dash Mounting Bracket
• Thick Dash Extension for varied panel thickness
• Power Harness with Waterproof Fused Holder
• Integrated 2-Pin Waterproof Plug & Play Transducer Connector
• Dual Mount Transducer (Transom or Glue-in-Hull) with 30ft cable
• Transducer Mounting Hardware (including removable transom mounting arms, pivot bracket, angle shims, cable clam, cable anchors, and stainless steel hardware)
• Instruction Manual

Key Benefits & Specifications:

• Expanded Depth Range: Provides accurate readings from 2.5 feet up to 600 feet (0.7 to 180 meters) to cover a wide array of water depths.
• Advanced Sonar Algorithms: Proprietary programming dramatically minimizes false readings for unmatched precision and reliability.
• High-Speed Performance: Delivers consistent and accurate depth updates at speeds up to 63 mph, perfect for vessels on plane.
• Intuitive EasyTouch Programming™: Allows for one-touch access to user-adjustable settings for quick and convenient operation.
• User-Programmable Keel Offset: Automatically adjusts depth readings to compensate for your vessel's draft, ensuring true depth measurements.
• Selectable Readouts: Easily switch between Imperial (feet) or Metric (meters) depth readings.
• Dual Depth Alarms: User-programmable upper and lower depth alarms provide critical warnings for shallow or deep water conditions.
• 3-Stage Advanced Warning System™: Clearly signals alarm conditions with an audible beep, flashing red LED, and blinking LCD indicators, featuring one-touch alarm muting.
• Automatic Memory Retention: All user settings are automatically saved, maintaining your preferences even after power-down.
• Customizable Aesthetics: Patented removable face system includes both white and black faceplates and trim rings to match various dash configurations.
• No-Glare, Polarized LCD: Offers spot-free viewing with or without sunglasses, enhanced by a SoftGlow™ backlit display and programming keys for unparalleled nighttime visibility and reduced eye strain.
• Durable & Waterproof Design: Features an IPX5 waterproof rating for the front face, ensuring resilience in harsh marine environments.
• Flexible Transducer Options: Includes a dual-mount 200kHz transducer that can be transom mounted or glued in-hull through solid fiberglass or up to 1/8-inch aluminum hulls.
• Standard 2-Year Warranty: Backed by HawkEye's You-Break-It ~ We-Fix-It™ warranty for peace of mind.

Technical Specifications:

• Gauge Dimensions (Diameter x Depth): 2" x 1.75" (51 x 45mm)
• Screen Dimensions (Height x Width): 1.65" x .87" (42 x 22mm)
• Gauge Cut-out Size: 2"
• Operating Temperature: 0 to 160° F (-18 to 71°C)
• Transducer Frequency: 200kHz
• Transducer Beam Angle: 14°
• Transducer Cable Length: 30' (9 M)
• Power Requirement: 12-14 VDC
