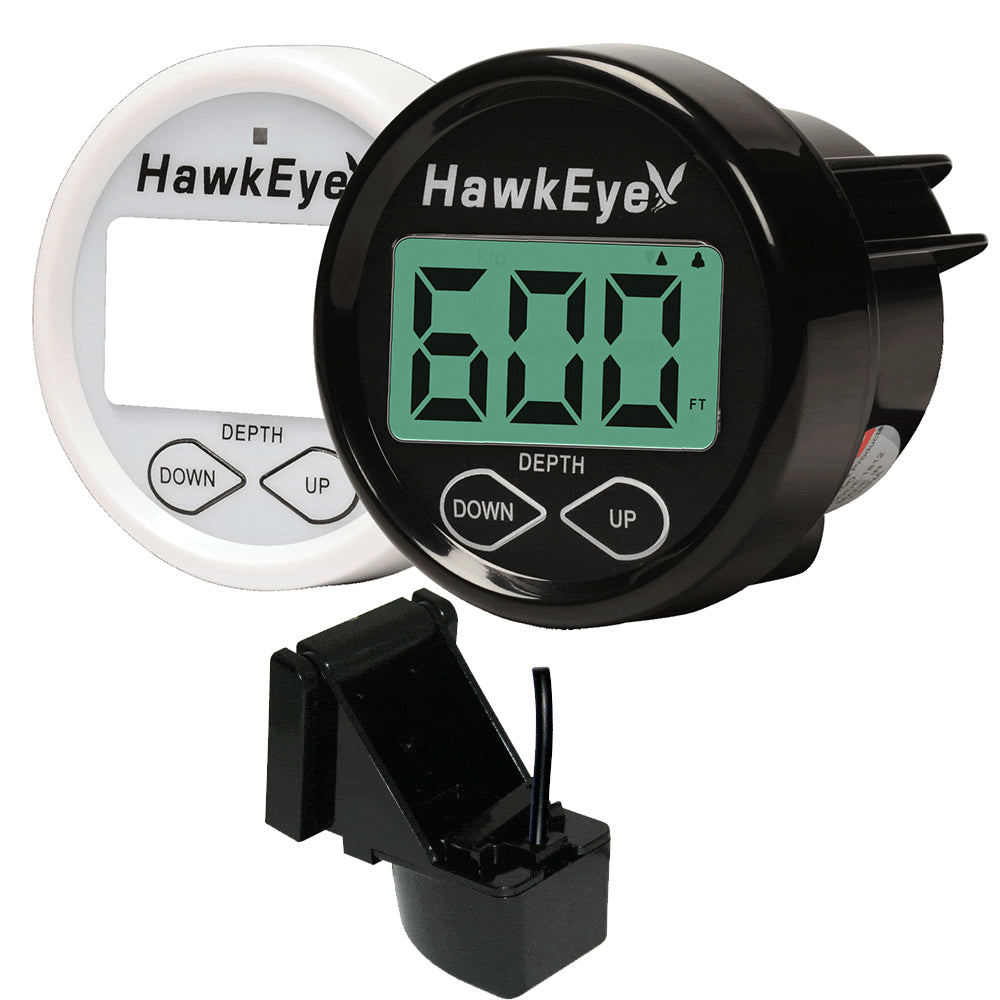

HawkEye DepthTrax 2BX In-Dash Digital Depth and Temp Gauge with Transom Mount Transducer

The HawkEye DepthTrax 2BX is an in-dash digital depth sounder designed for marine vessels, featuring integrated air and water temperature monitoring. This high-performance system includes a transom-mount AIRMAR transducer and an LCD display with customizable settings for precision depth readings.

Key Features:

• Algorithmic programming for reduced false readings and improved accuracy
• User-programmable keel offset for vessel draft adjustments
• 3-Stage Advanced Warning System with audible, LED, and LCD alerts
• SoftGlow backlit display and keys for improved nighttime viewing
• Displays depth, air temperature, and water temperature in Imperial or Metric units
• Includes interchangeable white and black faceplates and trim rings
• Automatic memory retention for all user-defined settings
• Polarized, anti-glare LCD screen with protective sun cover

Technical Specifications:

• Gauge Diameter: 2 in.
• Gauge Depth: 1.75 in.
• Cut-out Size: 2 in.
• Depth Range: 2.5 ft. to 600 ft.
• Transducer Frequency: 200 kHz
• Beam Angle: 14 deg.
• Cable Length: 30 ft.
• Power Input: 12-14 VDC
• Operating Temperature: 0 to 160 deg. F

In the Box:

• Digital depth gauge unit
• Transom-mount transducer with 30 ft. cable
• Black and white faceplates and bezels
• Display cover
• Mounting hardware
• Instruction manual
