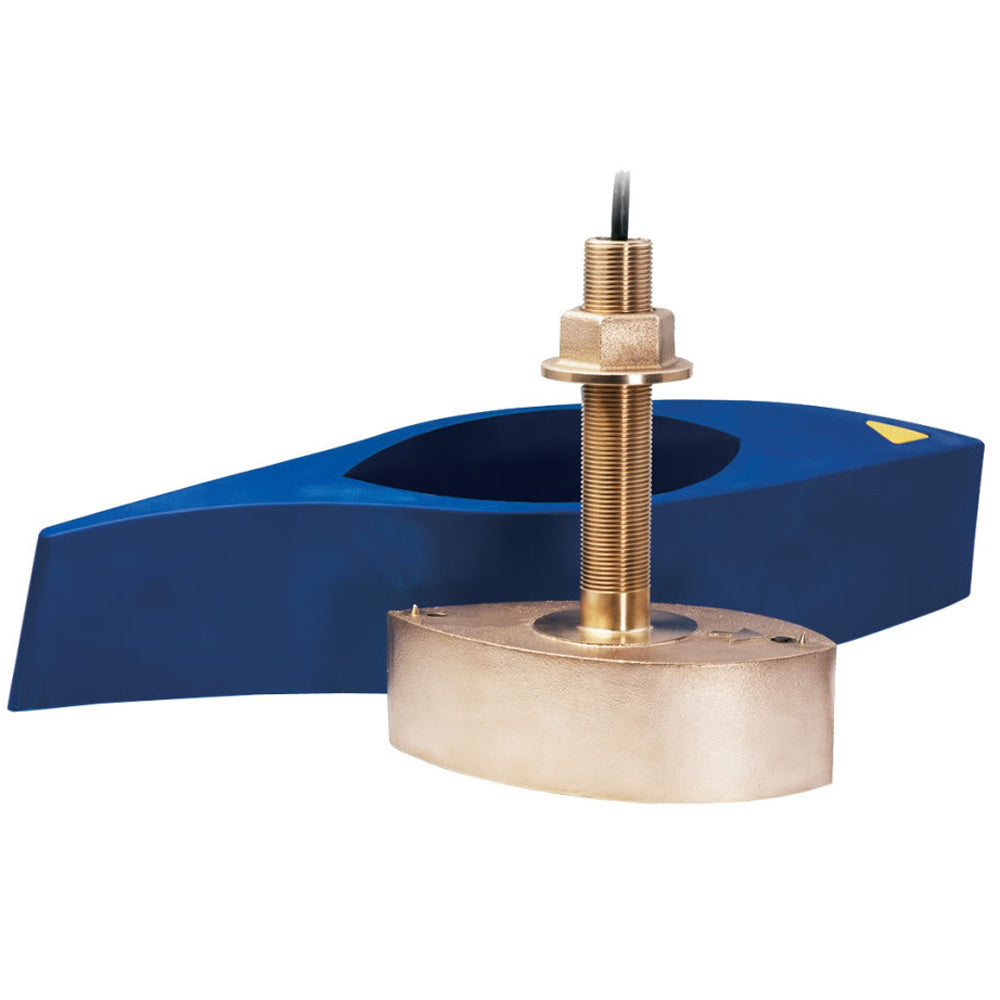

Raymarine B265LH 1kW Bronze Thru-Hull CHIRP Transducer with Temp

Unleash superior underwater visibility with the Raymarine B265LH 1kW Bronze Thru-Hull CHIRP Transducer, Part Number A80010. Engineered for serious coastal and offshore fishing, this powerhouse transducer delivers exceptional clarity and target separation across the entire water column. Its dual-channel CHIRP technology penetrates deep waters while providing micro-detail in shallower ranges, allowing you to locate baitfish, game fish, and bottom structures with remarkable precision. Upgrade your sonar system today and fish with unparalleled confidence.

In the Box:

• Raymarine B265LH 1kW Bronze Thru-Hull Transducer (A80010)
• High-Performance Fairing Block
• 10m (33ft) Cable
• Mounting Hardware

Key Benefits & Specifications:

• Dual-Channel CHIRP Sonar: Operates across a wide spectrum of frequencies, combining a low-frequency array (42-65 kHz) for deep-water detection (up to 3,000 ft/914m) and a high-frequency array (130-210 kHz) for crisp, high-resolution detail and target separation in shallower depths (up to 1,000 ft/304m).
• Powerful 1kW Output: Delivers robust signal return for excellent deep-water performance and fish finding even in challenging sea conditions.
• Durable Bronze Construction: Features a corrosion-resistant bronze housing designed for permanent thru-hull installation on fiberglass or wooden hulls, ensuring long-lasting reliability in marine environments.
• Integrated Temperature Sensor: Provides fast-response water temperature readings, a crucial tool for identifying thermoclines and favorable fishing zones.
• High-Performance Fairing Block: Includes a custom-fit fairing to optimize water flow across the transducer face, maintaining clear sonar readings and broadband performance at speeds exceeding 30 knots.
• Wide Deadrise Angle Compatibility: Designed for thru-hull mounting on hulls with a deadrise angle of 0° to 20° with the included fairing block.
• Eight Internal Ceramics: Ensures strong, consistent CHIRP return signals for enhanced detail and accuracy.

Compatibility & Pairings:

The B265LH is fitted with an 11-pin CHIRP connector for direct integration with Raymarine's premium sonar modules and displays. It is designed to mate directly with:

• Axiom Pro RVX and Axiom 2 Pro RVM Chartplotters
• CP470 and CP570 Professional CHIRP Sonar Modules
• RVX-1000 and RVM-1600 Remote Sonar Modules
