Maretron ACM100-01 Alternating Current Monitor, NMEA 2000 Certified

Gain complete insight into your vessel's AC power system with the Maretron ACM100-01 Alternating Current Monitor. This NMEA 2000 certified device provides comprehensive monitoring of critical AC sources like shore power and generators, translating complex electrical data into easily digestible information for your vessel's network. Optimize your boat's electrical management and ensure smooth operation. Upgrade your monitoring capabilities today.

In the Box:

• ACM100 Module with NMEA 2000 Micro-C connector

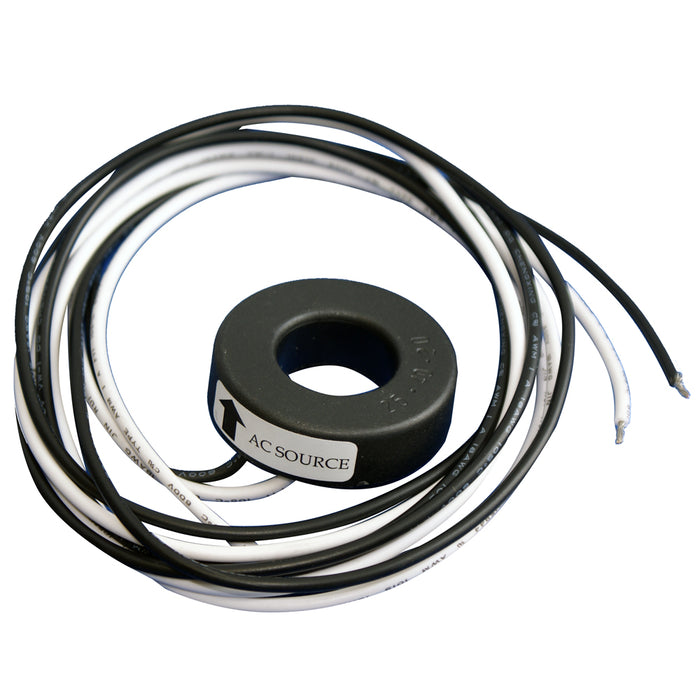

• 100 Amp Current Transformer (CT) with high-accuracy ring sensor
• Mounting Hardware (Stainless steel screws)
• User Manual

Key Benefits:

• Comprehensive AC Monitoring: Tracks voltage, current, frequency, real power, reactive power, apparent power, power factor, and total energy imported/exported for a complete power picture.
• Real-time Data: Provides instant access to electrical parameters, enabling proactive issue identification and system optimization.
• NMEA 2000 Certified: Ensures seamless integration with your existing marine network, allowing data to be displayed on compatible MFDs and control systems.
• Versatile Source Monitoring: Capable of monitoring shore power, generators, and onboard AC power buses.
• Durable Marine Construction: Features waterproof connectors and a sealed enclosure (IP64 rated) to withstand harsh marine environments.
• Electrical Safety: Opto-isolation prevents ground loops, protecting sensitive onboard electronics from potential damage.
• Wide Voltage Support: Accommodates both 120V and 240V AC systems, supporting a voltage range of 0V to 264V AC.
• High Current Capacity: Monitors up to 150 Amps of current when used with the included current transformer.

Compatibility & Pairings:

• Displays data on Maretron DSM150/DSM250 dedicated displays.
• Integrates with Maretron N2KView vessel monitoring and control software.
• Compatible with any NMEA 2000 certified display or system.
