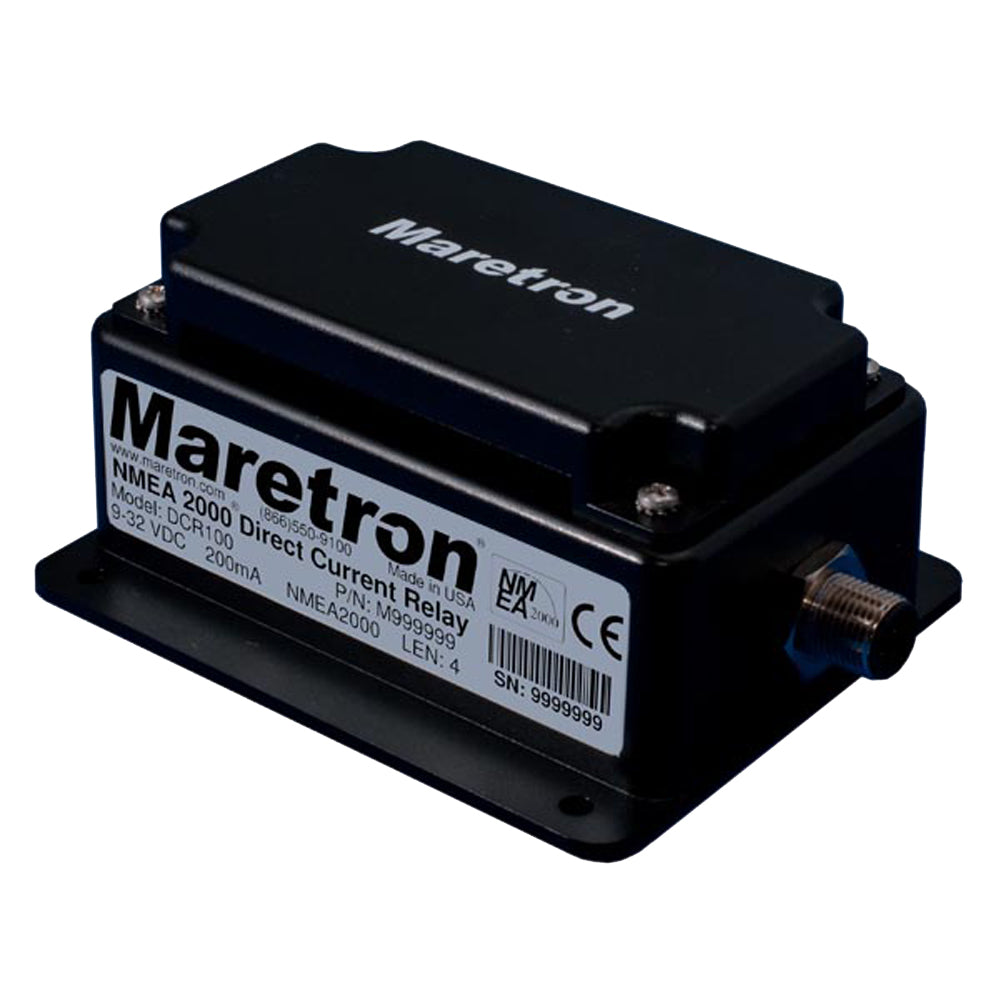

Maretron DCR100-01 Direct Current Relay Module, 6-Channel NMEA 2000

Gain advanced control and monitoring over your vessel's DC electrical systems with the Maretron DCR100-01 Direct Current Relay Module. This NMEA 2000® certified module provides six independent solid-state relays, allowing you to seamlessly manage various onboard DC loads like lights, pumps, and motors directly from your marine network. Designed to thrive in harsh marine environments, the DCR100-01 offers robust protection and intelligent diagnostics to enhance your vessel's safety and automation. Upgrade your onboard power management today for unparalleled convenience and reliability.

In the Box:

• Maretron DCR100 Relay Unit
• Removable Screw Terminal Connectors
• Stainless Steel Mounting Hardware
• User Manual

Key Benefits & Specifications:

• Six Independent Solid-State Relays: Provides versatile on/off control for up to six separate DC circuits, offering longer lifespan and faster switching than mechanical relays.
• NMEA 2000® Network Integration: Connects directly to your NMEA 2000® backbone for centralized control via Maretron DSM250 displays or N2KView® Platinum software.
• High Current Capacity: Each relay is capable of switching up to 10 amps, handling both resistive (e.g., lights) and inductive (e.g., pumps, motors) DC loads.
• Individual Current Monitoring: Reports the electrical current through each channel, allowing detection of burnt-out bulbs or excessive load draw.
• Advanced Protection: Features automatic over-current shutdown (at approximately 12 amps) and automatic thermal shutdown (over temperature protection) to safeguard the module and connected circuits.
• Rugged Marine Design: Built with a sealed, waterproof enclosure, waterproof connectors, and an IP64 rating for dependable operation in demanding marine conditions.
• Opto-Isolated Design: Provides optical isolation from the NMEA 2000® network, effectively eliminating potential ground loops.
• Customizable Control: Relays can be configured with defined power-up states and locked against inadvertent actuation for enhanced system management.
• AC Circuit Switching Capability: Can also be used to switch AC circuits when integrated with external relays.

Recommended Pairings: For optimal system integration and remote control, pair with Maretron DSM250 displays and N2KView® Platinum software.
