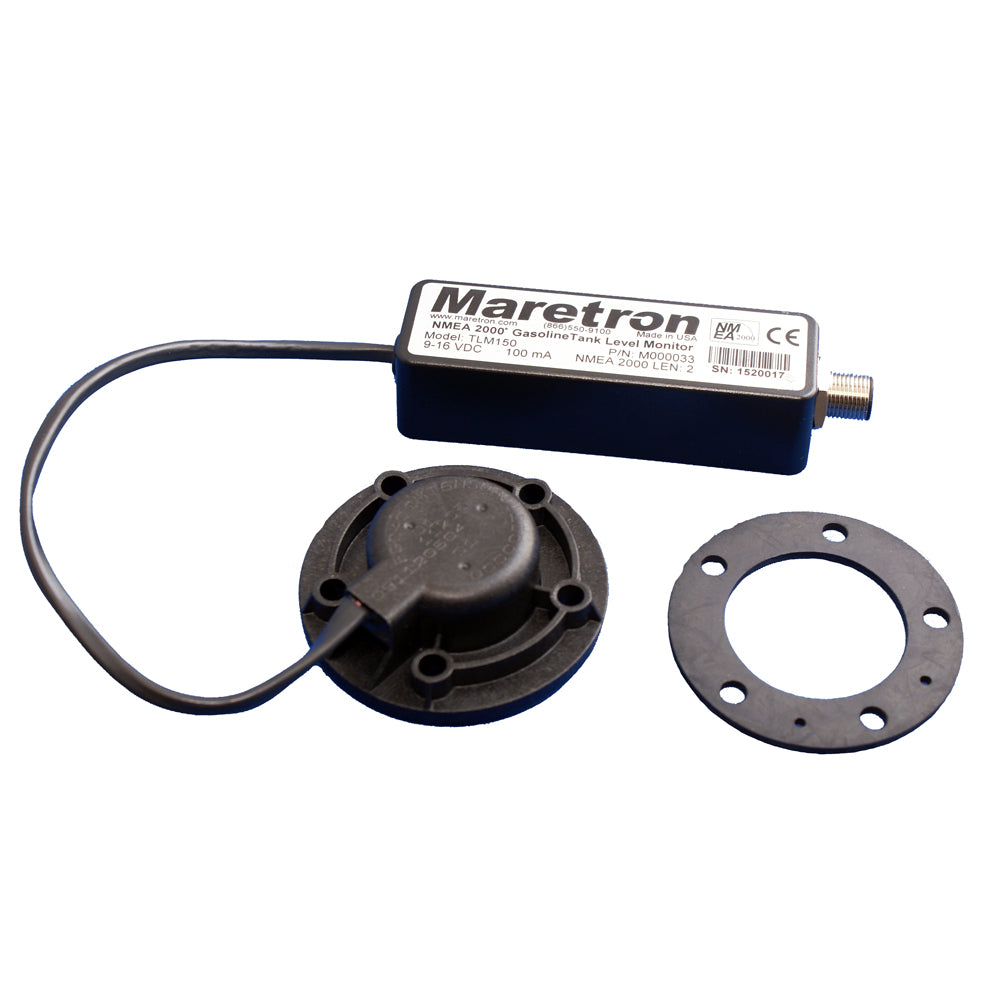

Maretron TLM150 Ultrasonic Tank Level Monitor, NMEA 2000, 24" (Gasoline Only)

Gain precise and reliable insight into your vessel's fuel levels with the Maretron TLM150 Ultrasonic Tank Level Monitor. Designed specifically for gasoline tanks up to 24 inches deep, this advanced sensor utilizes ultrasonic technology to provide accurate, non-contact readings, eliminating issues like fouling and corrosion common with traditional probes. Seamlessly integrate it into your NMEA 2000® network for convenient, real-time monitoring on any compatible display. Built to withstand the harsh marine environment, the TLM150 ensures optimal fuel management and peace of mind on the water. Upgrade your fuel monitoring system today for smarter navigation.

Key Features & Benefits:

• Ultrasonic Measurement: Senses gasoline levels without contact, eliminating probes that can corrode or foul, ensuring maintenance-free and precise data.
• NMEA 2000® Certified: Transmits tank level data over your NMEA 2000® network, allowing you to observe levels anywhere on the vessel with a compatible display.
• 24-Inch Depth Capability: Accurately monitors gasoline tanks up to 24 inches (0.61m) deep, suitable for a wide range of vessel sizes.
• Irregular Tank Calibration: Features 16-point calibration for irregular tank shapes, providing true and accurate fluid levels regardless of tank design.
• Gasoline Only Compatibility: Engineered exclusively for gasoline tanks, ensuring optimized performance and accuracy for this specific fuel type.
• Robust Marine Design: IP67 rated and built to operate in temperatures from -25°C to 55°C with IEC 60945 Exposed classification, guaranteeing durability in demanding marine conditions.
• Multiple Mounting Options: Compatible with SAE J1810 5-hole mounting patterns and adaptable for 1.5" NPT or 1.25" BSP threaded openings using optional adapters.
• Integrated Protections: Includes indefinite reverse battery protection and load dump protection (SAE J1113 rated) to safeguard your marine electrical system.

Recommended Pairings: For comprehensive vessel monitoring, integrate with Maretron DSM series displays (e.g., DSM250, DSM410) or N2KView® monitoring systems. Optional focus tubes are available for vessels with planing hulls.
